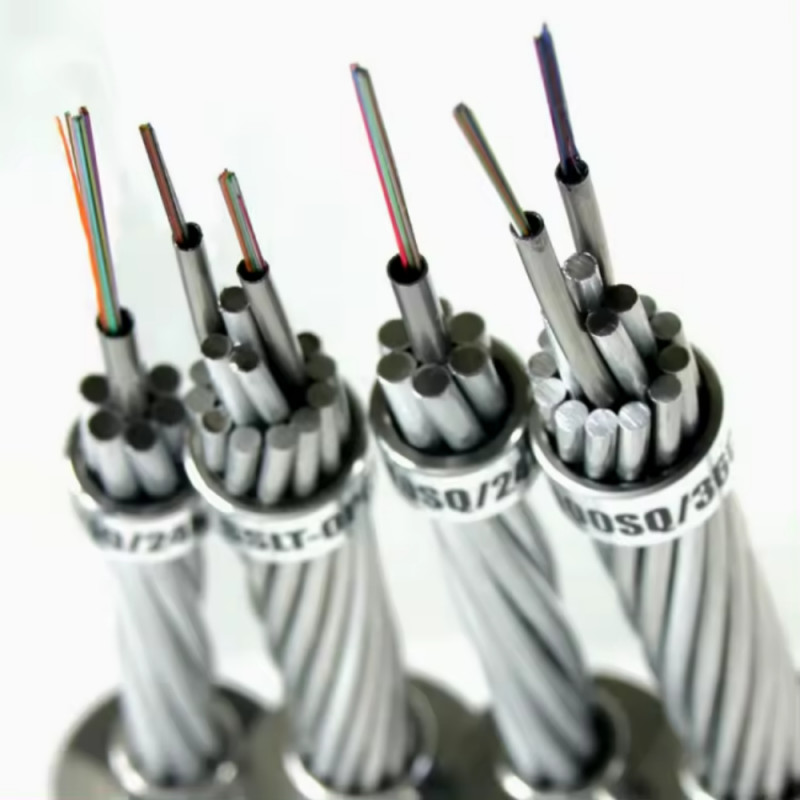

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable
24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable 24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable 24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable
Contactar ahora

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable

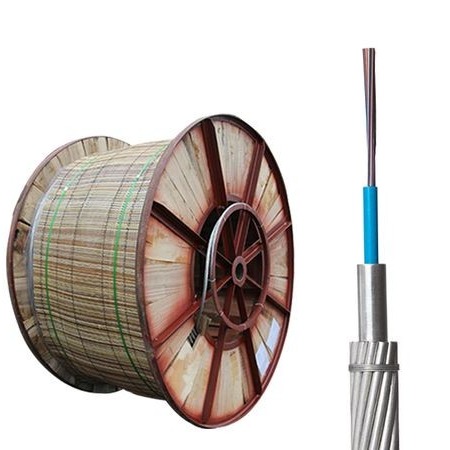

Minimum Order Quantity : 1 piece Packaging Details : Wooden Drum
Delivery Time : 2days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China Nombre de la marca: JQ/OEM/Customize
Certificación: CE/ISO9001/RoHS/FCC Model Number: OPGW

Información detallada
Model Number: OPGW Place of Origin: Guangdong, China
Application: Telecommunications Oem: Available
Nombre de la marca: JQ/Haiso/OEM Operating temperature: -40℃- +70℃
Warranty: 2years Package: 6PCS/Carton box
Number /diameter of AC wire: 2.4-3.5 mm Diameter of Cable: 10.5-15 mm
Cross Section Area: 60-180 mm2 Fiber: G652D, G657A1, G657A2
Fiber Mode: Single Mode or Multi Mode Model: OPGW
Installation: Self-supporting Aerial Usage Scenario: FTTH FTTB FTTX Network
Fiber Color: Blue,Orange,Brown,Aqua,Grey Number Of Cores: 4-48 core
Maximum Crush Resistance: 3000N/100mm Water Seepage: water blocked
Optical Union: Stainless Steel Optical Unit Standard: IEEE1138
Operating Temperature: -40°C to +70°C Layer: ACS, AA
Resaltar:

OPGW fiber optic cable 24 core

,

composite fiber optic cable 72 core

,

optical ground wire cable 48 core

Descripción de producto

Product Description:



Overview of G652D OPGW Fiber Optic Cable (24, 36, 48, 96, 144 Cores)

Optical Fiber Composite Overhead Ground Wire (OPGW) is a dual-purpose cable that integrates optical fiber units within the structure of an overhead ground wire. This innovative design combines the electrical and mechanical properties of traditional ground wires with the capability to transmit audio, video, and data signals, ensuring efficient communication alongside power transmission.

Key Features of G652D OPGW Fiber Optic Cable

  • Compact and Lightweight: Features a small cable diameter and reduced weight, minimizing short-circuit current capacity for optimized performance.
  • Durable Metal Armoring: The outer layer is encased in metal, providing resistance to high-voltage galvanic corrosion and degradation.
  • Ease of Maintenance: Designed for straightforward maintenance and capable of addressing line-crossing challenges, with mechanical properties that meet diverse line requirements.

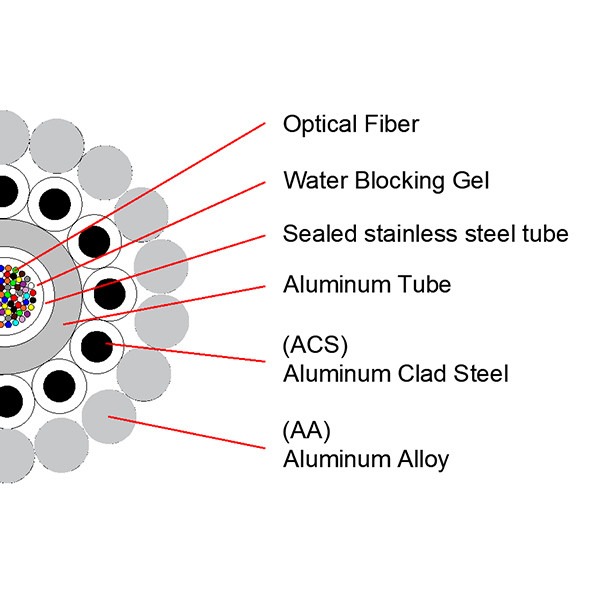

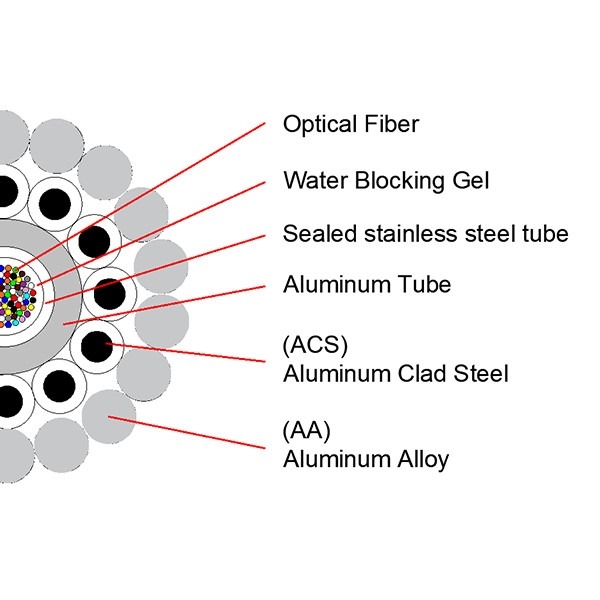

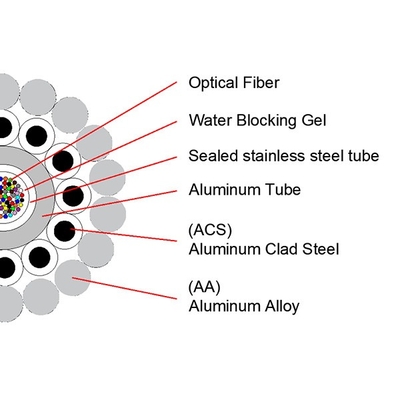

Structural Design of G652D OPGW Fiber Optic Cable

  • Central Loose Tube Type: Ideal for cables with a cross-sectional area of 80 mm² or less, offering a compact solution for lower fiber counts.
  • Loose Layer Stranded Type: Suited for cables with larger cross-sectional areas, accommodating higher fiber counts such as 96 or 144 cores for enhanced capacity.

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable 0

Specifications:

Cable model OPGW-60 OPGW-70 OPGW-90 OPGW-110 OPGW-130
Number /diameter(mm) of stainless steel tube 1/3.5 2/2.4 2/2.6 2/2.8 1/3.0
Number /diameter of AL wire(mm) 0/3.5 12/2.4 12/2.6 12/2.8 12/3.0
Number /diameter of ACS wire(mm) 6/3.5 5/2.4 5/2.6 5/2.8 6/3.0
Diameter of Cable (mm) 10.5 12 13 14 15
RTS(KN) 75 45 53 64 80
Cable weight (kg/km) 415 320 374 432 527
DC resistance(200C W/km) 1.36 0.524 0.448 0.386 0.327
Modulus of elasticity(Gpa) 162 96.1 95.9 95.6 97.8
coefficient of Linear thermal 12.6 17.8 17.8 17.9 17.2
expansion(1/℃×10-6)
Short circuit capacity (kA²s) 24 57.3 78.9 105.8 150.4
Max. operation temperature (℃) 200 200 200 200 200
Max. fiber count 48 32 48 52 30



Company Profile: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Located at 2nd Floor, Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou City, Guangdong Province, China, Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a leading high-tech joint-stock enterprise. Specializing in the research, development, production, and sales of optical cables ranging from 2 to 288 cores, the company is committed to delivering innovative and high-quality solutions.

Guided by a philosophy of integrity, agility, efficiency, and innovation, Jiqian strives for excellence and prioritizes customer satisfaction as the cornerstone of its performance. The company is dedicated to providing superior products, competitive pricing, and exceptional service to foster enduring partnerships.

Jiqian warmly invites global customers to visit its facility and establish long-term, mutually beneficial relationships.

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable 124 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable 2

WHY CHOOSE US:

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable 3



Certification:

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable 4

Frequently Asked Questions (FAQ)



  1. Who are we?
    Based in Guangdong, China, since 2017, we serve markets in Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of 11–50 dedicated professionals.
  2. How do we ensure quality?
    We provide pre-production samples for approval before full-scale manufacturing and conduct thorough final inspections prior to shipment.
  3. What products can you purchase from us?
    We offer Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and both Outdoor and Indoor Fiber Cables.
  4. What services do we provide?
    • Delivery Terms: FOB, EXW
    • Payment Currencies: USD, CNY
    • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
    • Languages: English, Chinese
  5. What is your minimum order quantity (MOQ)?
    Our MOQ is 1 kilometer.
  6. Can I request a sample?
    Yes, we provide free samples; you only need to cover the shipping costs.
  7. Do you support OEM or ODM?
    Yes, as a manufacturer with our own Engineering Department, we can customize products based on your specific requirements.
  8. What is your delivery timeline?
    Standard delivery takes 3–7 days after order confirmation, depending on the order volume.
