Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Contactar ahora

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Cantidad de orden mínima : 50 por ciento Detalles de empaquetado : Bolsa de educación física o caja de plástico y caja de dibujos animados
Tiempo de entrega : 3-5 días de trabajo Condiciones de pago : Unión occidental, T/T, L/C
Capacidad de la fuente : 30000 piezas por día
Lugar de origen: Guangzhou, China Nombre de la marca: JQ/OEM/Customize
Certificación: ISO 9001,ROHS CE-EMC FCC SDOC Número de modelo: Coleta de fibra óptica

Información detallada
Solicitud: FTTH FTTB FTTX Red Tipo de conector: SC UPC
Longitud: 3 metros o modificado para requisitos particulares Color: personalizado
Diámetro de cable: 0.9/2.0/3.0 mm Ferrule Fin-Face: PC/UPC/APC
Material de la chaqueta: PVC/LSZH/PE Nombre del producto: Coleta de fibra óptica
longitud de onda del transmisor: 1310 nm Artículo: Cordón de parches de fibra óptica
Tipo de fibra: G.652D/G.657A1/G.657A2 Red: 4g, 5g
No de fibra: 1 (Simplex) Productos: OM4 SC-SC 12 núcleo de cable de parche de fibra óptica
Conteo de fibra: 9/125um, 50/125um, 62.5/125U Pérdida de retorno: El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef
Diámetro del cable: 2.0 3,0 mm Las demás: APC
Tipo de esmalte: UPC a UPC Longitud del cable: 1m/2m/3m/5m/10m/personalizado
Modo de fibra: Modo único Tipo de cable: Modo único/multimodo
Número de núcleos: Núcleo único Longitud de onda: 1260-1650nm
Conectores opcionales: LC/SC/FC/ST Interno: Cerámico
Pulido: PC o UPC Características: Alto rendimiento en IL&RL
Número de conductores: 1 Chaqueta: PVC/LSZH
Resaltar:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

Descripción de producto

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

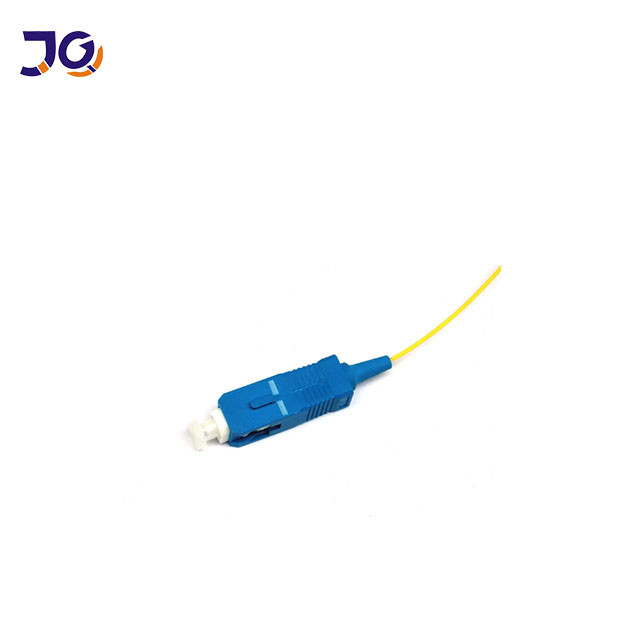

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

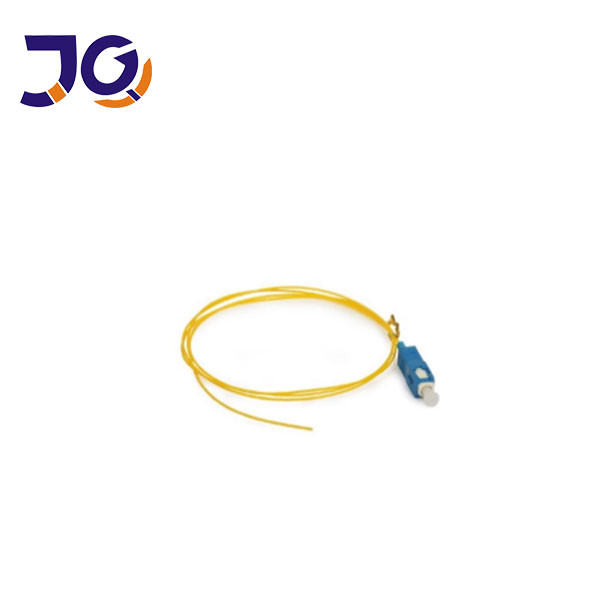

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

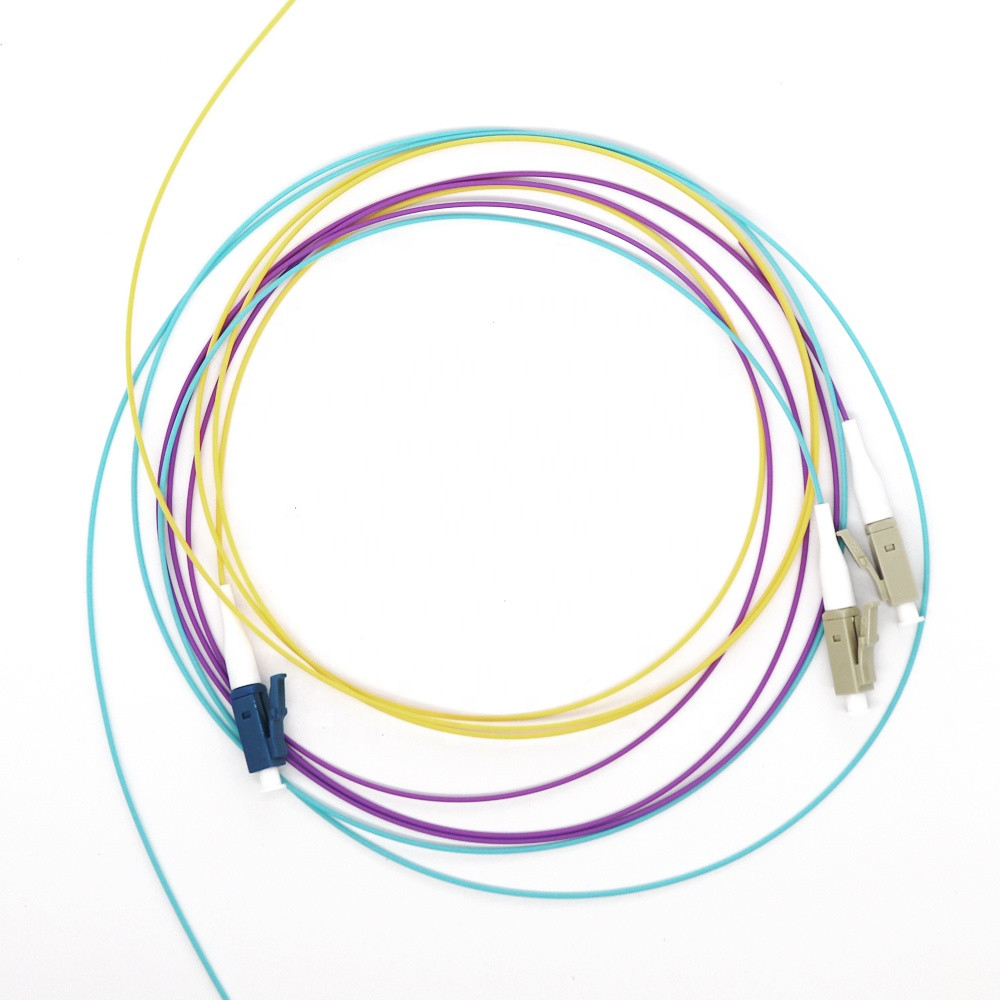

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3



FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
