Name: SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: Cable de conexión SM-SX
Price: 3.20 USD
Availability: InStock

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable

50 piezas

MOQ

Inquiry for price

Precio

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Material: LSZH/PVC

Color: Amarillo/Negro

Repetibilidad: ≤ 0,2 dB

recuento de fibras: Simplex o Dúplex

Tipo de conector: SC/APC-SC/UPC

Longitud: 1m 2m 3m o personalizado

Polaco: PC/UPC/APC

Longitud personalizada: 1/2/3/5/7/3/9/10M

Resaltar:

SC APC to SC UPC fiber patch cord

LSZH fiber optic jumper cable

single mode low loss patch cord

Información básica

Lugar de origen: Cantón, China

Nombre de la marca: JQ/OEM/Customize

Certificación: ISO 9001,ROHS CE-EMC FCC SDOC

Número de modelo: Cable de conexión SM-SX

Pago y Envío Términos

Detalles de empaquetado: 100 unidades en una caja de dibujos animados de exportación

Tiempo de entrega: 5-8 días laborables

Condiciones de pago: Western Union, T/T, LC, Alipay

Capacidad de la fuente: 5000 unidades por día

Galería

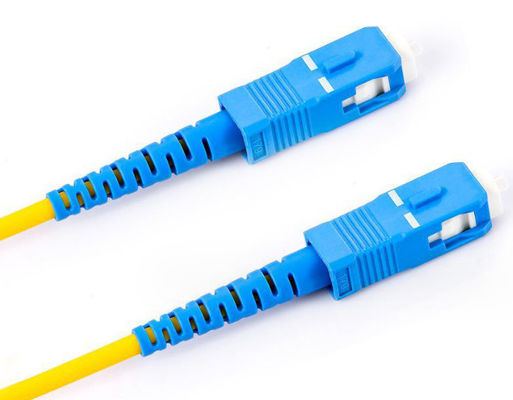

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable

Descripción de producto

SC APC to SC UPC Fiber Patch Cord Single Mode Simplex LSZH Cable

Product Introduction:
SC/APC to SC/UPC fiber optic patch cord is designed for high-speed and stable data transmission, using 9/125µm single-mode fiber with factory-terminated connectors for reliable performance.

Key Features:
SC/APC to SC/UPC connectors
9/125µm single-mode simplex fiber
LSZH 3.0mm jacket for safe indoor use
Low insertion loss and high return loss
100% factory tested with QC traceability
Available in 1m 2m 3m lengths

Applications:

FTTH and FTTX networks
Data centers and LAN systems
Telecom and CATV networks
Indoor fiber optic connections

Optical Characteristics

Parameter

UPC

APC

Multi-mode

Insertion loss

≤0.3dB

Return loss

≥40dB

≥50dB

≥60dB

≥35dB

Exchange

≤0.2dB

Repeatability

≤0.2dB

Servicelife

>1000times

Tensile strength

>10kg

Temperature range

-40°C to +85°C

Technical Data

Type

Standard,Master

Style

LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

FC/APC,LC/APC.MU/APC

Fiber

Singlemode/Multimode

50/125,62.5/125(Multi mode) OM2&OM1

50/125,10G(Multi mode)OM3

Cable

Simplex,Duplex

outer diameter:3.0mm,20mm,0.9mm

PVC or LSZH

Polishing Manner

UPC,SPC,APC(8°&6°)

Insertion Loss

≤0.1dB (For Single mode Master)

≤0.25dB (For Single mode Standard)

≤0.25dB (ForMultimode)

Tested by JDSRM3750

Return Loss

(Single mode)

UPC≥50dB

SPC≥55dB

APC≥60dB (typ.65dB)

Tested by JDSRM3750

Repeat ability

≤0.1dB

Operating temperature

-400 C° to 850 C°

Geometry Requirement

(Single mode)

Ferrule Endface Radius

7mm≤R≤12mm (For APC)

10mm≤R≤25mm (For Standard)

Apex Offset≤30μm (For Master)

Apex Offset≤50μm (For Standard)

Under cut-50nm SU≤50nm

Tested by DORCZX-1

Connector Type

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 1

Recommed Products

Packing & Delivery

Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 3

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 4

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 5

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 6

Factory Pictures

Fiber Patch Cord FAQ

Q1: What connectors does this patch cord use?
A: It uses SC/APC to SC/UPC connectors.

Q2: What type of fiber is included?
A: 9/125µm single-mode simplex fiber.

Q3: Is it suitable for indoor use?
A: Yes, it has an LSZH jacket for safety and low smoke.

Q4: What lengths are available?
A: 1m, 2m, and 3m options.

Q5: Is the cable tested before delivery?
A: Yes, it is 100% factory tested for performance.
