Name: GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA53
Price: 1,249.01 USD
Availability: InStock

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable

1km

MOQ

Inquiry for price

Precio

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Tipo de fibra: Modo único G652D o como su solicitud

Color: Negro, personalizado

vaina exterior: PE/HDPE/MDPE/

recuento de fibras: 2-288 núcleos

Nombre del producto: Cable blindado de tubo holgado trenzado

Instalación: Entierro/ conducto directo

Tipo: Modo del &Multi del solo modo

Marca de fibra: YOFC/ Hogar de fibra/ Corning/ Fujikura

Resaltar:

GYTA53 armored fiber optic cable

96 core outdoor direct burial cable

double aluminum heavy armored cable

Información básica

Lugar de origen: GUANGZHOU,CHINA

Nombre de la marca: JQ/OEM/Customize

Certificación: ISO9001/ ROHS/ CE/ FCC

Número de modelo: GYTA53

Pago y Envío Términos

Detalles de empaquetado: Tambor de madera o personalizado

Tiempo de entrega: 5-8 días laborables

Condiciones de pago: L/C, T/T, Western Union, Alipay

Capacidad de la fuente: Los 4500KM por mes

Galería

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable

Descripción de producto

GYTA53 24 36 48 Core Direct Burial Outdoor Armored Fiber Optic Cable

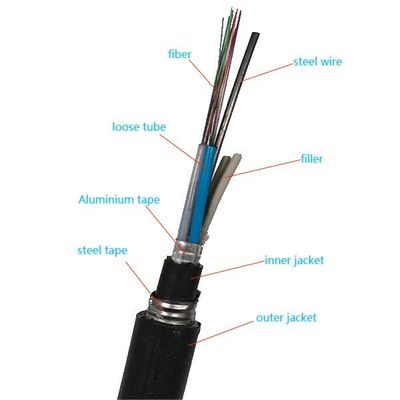

Product Features

Aluminum tape armor with double sheath for high mechanical protection
Central steel strength member for excellent tensile performance
Gel-filled loose tube for effective water blocking
UV-resistant PE outer jacket for long-term outdoor durability
Stable structure ensures low loss and reliable transmission

Application Scenarios

Direct burial underground installations
Telecom backbone and metropolitan networks
Long-distance outdoor communication systems
Harsh environments requiring high durability and protection

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

GYTA53( Aluminium polyethylene laminate)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2~30	13.2	162	3000	1000	3000	1000
32~48	13.8	175	3000	1000	3000	1000
50~72	14.6	205	3000	1000	3000	1000
74~96	16.0	230	3000	1000	3000	1000
98~144	17.6	285	3000	1000	3000	1000
＞144	Avaliable upon customer's request

Cable type	Drum
Cable type	Height (mm)	Width (mm)	Inner diameter (mm)	Length (km)	Drum type
GYTA53-12	950	760	400	2	Wooden drum
GYTA53-24	950	760	400	2	Wooden drum
GYTA53-48	1100	760	500	2	Wooden drum
GYTA53-96	1200	760	500	2	Wooden drum

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable 0

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable 1

Packing

1/2/3/4km or customized length export wooden drum

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable 2

FAQ(GYTA53 Direct Burial Cable)

Q1: Is this cable suitable for direct burial?
A: Yes, it features double sheath and armor for direct underground use.

Q2: What is the core count of this cable?
A: This model is 36 core, with other options available on request.

Q3: Does it offer crush and water resistance?
A: Yes, aluminum armor and gel filling provide excellent protection.

Q4: Can we print our brand logo on the cable?
A: Yes, custom brand marking is available on the jacket.

Q5: What is the lead time for bulk orders?
A: Standard delivery is 1–2 weeks after order confirmation.
