Inicio /Productos/Cables blindados de fibra óptica/GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced

1km
MOQ
Inquiry for price
Precio
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo de fibra: G652D/G657A1/G657A2
recuento de fibras: 2-288 núcleos
Chaqueta: PE,MDPE,LSZH,PVC,HDPE
Color: Negro o anaranjado o modificado para requisitos particulares
Longitud: 2km, 5km o longitud personalizada
Garantía: 10 años
Solicitud: En el caso de los animales, el tratamiento debe realizarse mediante un procedimiento de ensayo.
Tipo de tubo: Tubo suelto
Resaltar:

288 core armored fiber optic cable

,

steel tape reinforced optical cable

,

outdoor underground direct burial fiber
Información básica
Lugar de origen: Cantón China
Nombre de la marca: Jiqian/Customize/ OEM
Certificación: CE/ISO9001/RoHS/FCC
Número de modelo: GYTS-48B1 y sus derivados
Pago y Envío Términos
Detalles de empaquetado: Tambor de madera o personalizado
Tiempo de entrega: 3-5 días, depende de su cantidad
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 60000 km/mes
Descripción de producto

GYTS Armored Underground Fiber Optic Cable 2–48 Core Outdoor Communication Cable



Product Introduction
GYTS fiber optic cable is designed for underground installations, featuring steel tape armor for strong mechanical protection and stable long-distance signal transmission.



Key Features

  • Corrugated steel tape armor for crush resistance
  • Loose tube structure for fiber protection
  • Strong tensile performance
  • Durable PE outer sheath

Applications

  • Underground fiber networks
  • Telecom and backbone communication
  • Data center connections
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D

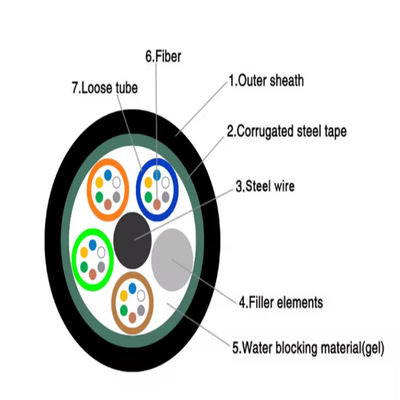

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 0

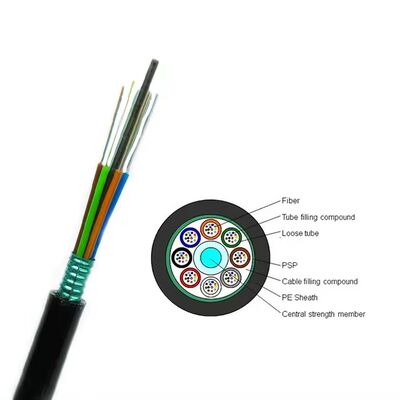

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 1

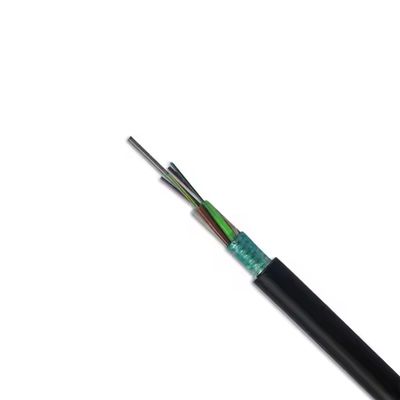

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 2





Fiber Tube Color:
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 3

Packaging Details

  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 4
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 5
Exhibition Picture
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 6

FAQ



1. What fiber types are available for GYTS cable?
It supports single-mode and multimode fibers such as G652D, OM1, OM2, OM3, and OM4.



2. How many cores are available?
Common options include 2, 4, 6, 8, 12, 24, 32, and 48 cores.



3. Is GYTS cable suitable for direct burial?
Yes, the steel tape armored structure provides strong protection for underground installation.



4. What environments is this cable designed for?
It is suitable for outdoor underground networks, telecom infrastructure, and backbone communication systems.



5. What is the outer jacket material?
The cable uses a durable PE outer sheath for weather and environmental resistance.
