Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable
Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable
Contactar ahora

Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable

Cantidad de orden mínima : 2 km Precio : 195USD~910usd
Detalles de empaquetado : Tambor de madera Tiempo de entrega : 6 días, depende de la cantidad del pedido.
Condiciones de pago : T/T, Alipay, Western Union, L/C Capacidad de la fuente : 10000 km por mes
Lugar de origen: Cantón, China Nombre de la marca: JQ or OEM/Customize
Certificación: ISO9001 CE ROHS FCC Número de modelo: cable OPLC de fibra compuesta

Información detallada
Aplicación: Las empresas de telecomunicaciones/centros de datos/FTTH Número de conductores: 2 o 3 o 4
Longitud: 305m/rollo o personalizado Material de la chaqueta: PE/HDPE/LSZH/MDPE
Nombre: cable híbrido OPLC de fibra óptica Material de cobre: Cobre puro al 100%
Material conductor: PVC/PRFV Tipo de fibra: G652D/ G657A1/ G657A2
Resaltar:

Hybrid FTTH fiber optic cable

,

OPLC power and data cable

,

Hybrid fiber optic transmission cable

Descripción de producto

What is a Hybrid Cable?

A Hybrid Cable, also known as an Optical Fiber Composite Low-voltage Cable (OPLC), integrates low-voltage power lines (≤0.6/1kV) and fiber optic cables in one structure. It enables simultaneous power supply and data transmission, ideal for applications requiring both electricity and high-speed communication.

Key Features

  • Separated Structure: Independent power and fiber units for easier installation and maintenance.

  • Integrated Transmission: One cable carries both power and data, reducing wiring complexity and cost.

  • Smart Application Ready: Perfect for FTTH systems, smart grids, and intelligent building networks.







  Technical parameter

Code Name Cable Cores Diameter (mm) Copper Wire (mm²) Linear Mass (kg/km) Tensile (N) Short Term Tensile (N) Long Term Crush (N) Short Term Crush (N) Long Term Bending Radius Short Term Bending Radius Long Term
OPLC-2*0.5 6~24 10.0 2*0.5 125.0 1500 600 1000 300 20D 10D
OPLC-4*0.5 6~24 10.0 4*0.5 130.0 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10.0 2*0.75 128.0 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10.0 4*0.75 135.0 1500 600 1000 300 20D 10D
OPLC-2*1.0 6~24 10.0 2*1.0 130.0 1500 600 1000 300 20D 10D
OPLC-4*1.0 6~24 12.0 4*1.0 150.0 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12.0 2*1.5 140.0 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12.0 4*1.5 160.0 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~24 14.5 2*2.5 180.0 1500 600 1000 300 20D 10D
OPLC-4*2.5 6~24 14.5 4*2.5 195.0 1500 600 1000 300 20D 10D
OPLC-2*4 6~24 14.5 2*4 210.0 1500 600 1000 300 20D 10D
OPLC-4*4 6~24 14.5 4*4 240.0 1500 600 1000 300 20D 10D

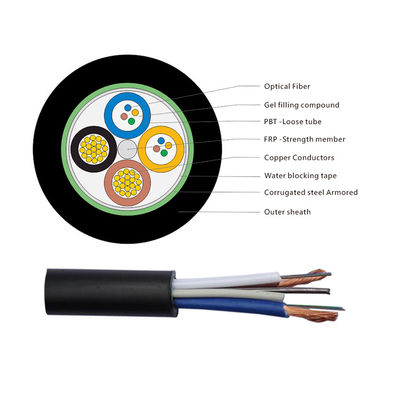

More details about a Hybrid Cable



Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable 0



GDTA bybrid fiber cable with 2 copper conductors



Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable 1



GDTS hybrid fiber cable with 2 copper conductors





Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable 2

GDTS hybrid fiber cable with 2*2.5MM² copper conductors



Packing







Hybrid FTTH OPLC Fiber Optic Cable Power and Data Transmission Cable 3



FAQ – Frequently Asked Questions

Q: Are you a manufacturer?
A: Yes, we are a direct factory.



Q: What is your MOQ?
A: 1 kilometer for fiber optic cables.



Q: What fiber brands do you use?
A: YOFC, Fiberhome, and other top brands.



Q: Do you accept small or trial orders?
A: Yes, small and trial orders are welcome.



Q: What is your delivery time?
A: Usually 5–7 days after order confirmation.



Q: Can you customize products and logo?
A: Yes, OEM service is available.



Q: What are your payment terms?
A: T/T, L/C, and Western Union. 30% deposit, balance before shipment.
