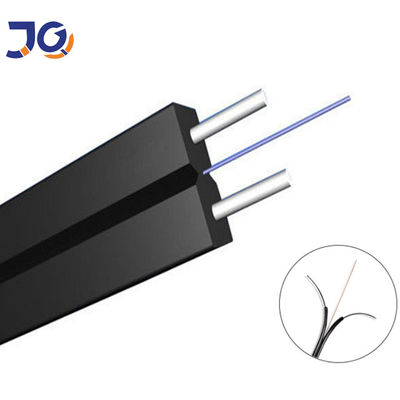

Name: 2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GJXH-2B6
Price: 1,249.01 USD
Availability: InStock

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Lugar de origen: Cantón, China

Fabricante: Sí

Tipo: Caja el cable GJXH

Tipo de fibra: G657A1/A2/G652D/G657A1/G657A2

Chaqueta: PVC LSZH

Longitud: 1 km o 2 km

OEM: Disponible

miembro de la fuerza central: El elemento de resistencia del FRP,el elemento de resistencia del alambre de acero

Resaltar:

2 core FTTH drop cable G657A2

indoor LSZH fiber optic cable

FTTH drop cable with LSZH jacket

Información básica

Lugar de origen: Porcelana

Nombre de la marca: JQ/OEM/Customize

Certificación: ISO 9001,ROHS CE-EMC FCC SDOC

Número de modelo: GJXH-2B6

Pago y Envío Términos

Detalles de empaquetado: Tambor de madera

Tiempo de entrega: 3-5 días, depende de la cantidad del pedido.

Condiciones de pago: L/C, T/T, Western Union, Alipay

Capacidad de la fuente: 4500 por mes

Galería

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable

Descripción de producto

Product Description

FTTH Drop Cable is designed for Fiber to the Home applications, used to connect equipment and components in fiber optic access networks.
The optical fiber is positioned between two parallel strength members and protected by an LSZH outer sheath, suitable for indoor installation.

Key Features

Single Mode Fiber G657A1
1 / 2 / 4 Core optional
Two parallel FRP or steel wire strength members
Self-supporting flat structure
Black or white LSZH sheath
Lightweight and easy installation
Ideal for indoor FTTH wiring

Cable Structure

Fiber type: G657A1 Single Mode
Strength member: 2×FRP or 2×Steel Wire
Fiber placement: Center between parallel strength members
Outer jacket: LSZH


Fiber Optical

			Item

			Unit

			Specification

			G. 657A

			Mode field diameter

			1310nm

			mm

			8.6 ± 0.4

			Cladding diameter

			mm

			125.0 ± 0.7

			Cladding non-circularity

			%

			≤1.0

			Core concentricity error

			mm

			≤0.5

			Coating diameter

			mm

			245 ± 5

			Coating/cladding concentricity error

			mm

			≤12

			Cable cut-off wavelength

			nm

			≤ 1260

			Attenuation Coefficient

			1310nm

			dB/km

			≤0.35

			1550nm

			dB/km

			≤0.21

			Macro-bend loss (1 turn,7.5mm radius)

			1550nm

			dB/km

			≤0.5

			1625nm

			dB/km

			≤1.0

			Proof stress level

			kpsi

			≥100

Technical parameters

			Product

			Model
			Fiber

			Count

			(core)
			Cable Diameter(mm)
			Cable Weight

			(kg/km)
			Tensile

			Strength

			Long/Short

			Term(N)
			Crush
Resistance

			Long/ShortTerm(N)

			Bending

			Radius

			Static/Dynamic

			GJXH
			1
			(2.1+0.1)*(3.1+0.1)
			10
			1000/2200
			200/1000
			15/30

			GJXH
			2
			(2.1+0.1)x(3.1+0.1)
			10
			1000/2200
			200/1000
			15/30

			GJXH
			4
			(2.3+0.1)*(3.3+0.1)
			12
			1000/2200
			200/1000
			|15/30

			GJXFH
			1
			(2.1+0.1)x<(3.1+0.1)
			9
			800/1800
			200/1000
			15/30

			GJXFH
			2
			(2.1+0.1)x(3.1+0.1)
			9
			800/1800
			200/1000
			15/30

			GJXFH
			4
			(2.1+0.1)x(3.1+0.1)
			11
			800/1800
			200/1000
			15/30

			GJYXCH
			1
			(2.1+0.1)*(5.1+0.1)
			21
			1500/2500
			500/1300
			15/30

			GJYXCH
			2
			(2.1+0.1)*(5.1+0.1)
			21
			1500/2500
			500/1300
			|15/30

			GJYXCH
			4
			(2.1+0.1)x(5.1+0.1)
			21
			1500/2500
			500/1300
			15/30

			GJYXFCH
			1
			(2.1+0.1)*(5.1+0.1)
			20
			1500/2500
			500/1300
			15/30

			GJYXFCH
			2
			(2.1+0.1)x(5.1+0.1)
			20
			1500/2500
			500/1300
			15/30

			GJYXFCH
			4
			(2.1+0.1)x(5.1+0.1)
			20
			1500/2500
			500/1300
			15/30

Related Products

Package

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 3

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 4

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 5

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 6

Lead time:
Quantity(km)	Samples	1-100km	100-500km
Earliest time	1days	3-5 work days	5-7 work days

FAQ

Q: Are you a factory or trading company?
A: We are a professional fiber optic cable manufacturer.

Q: What is the MOQ?
A: MOQ for fiber optic cable is 1 km.

Q: Which fiber brands do you use?
A: YOFC, FiberHome, or equivalent international brands.

Q: Do you accept small orders?
A: Yes. Small orders are welcome. We support new projects and trial orders.

Q: What is the delivery time?
A: Normally 5–7 days after order confirmation, depending on quantity.

Q: Can you provide OEM or customized products?
A: Yes. OEM service and customized logo/structure are available.

Q: What payment terms do you accept?
A: T/T, L/C, Western Union
(30% deposit, 70% before shipment)

etiqueta:

Teléfono :

+8618122383351

Fax :

86-020-82890902

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable

2 core FTTH drop cable G657A2

indoor LSZH fiber optic cable

FTTH drop cable with LSZH jacket

Product Description

Key Features

Cable Structure

Cable de descenso autosuficiente de la fibra óptica de FTTH

GJYXCH cable de descenso de la fibra

GJYXCH Cable de fibra óptica de FTTH

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable

GJYXFCH alambre de acero exterior FTTH cable de caída 1 2 4 núcleo G657A fibra flexible LSZH ignífugo fácil de instalar

Cables de fibra fibrosa FTTH para interiores 1 2 4 núcleo G657A1 LSZH GJXFH-1B6

FTTH Cable de caída al aire libre 1 4 núcleo con portador de acero LSZH

Precio de fábrica de cable de bajada de fibra óptica FTTH para interiores Cable de fibra hasta el hogar para la instalación de redes de telecomunicaciones

Cable de bajada de fibra óptica FTTH GJYXFCH GJXFH 1 2 4 núcleos Interior Exterior LSZH Bajo humo Cero halógenos

1-4 Núcleo de FTTH Drop Cable GJXFH-1B6, G657A1 Modo único, LSZH para uso en interiores

Item		Unit	Specification
Item		Unit	G. 657A
Mode field diameter	1310nm	mm	8.6 ± 0.4
Cladding diameter		mm	125.0 ± 0.7
Cladding non-circularity		%	≤1.0
Core concentricity error		mm	≤0.5
Coating diameter		mm	245 ± 5
Coating/cladding concentricity error		mm	≤12
Cable cut-off wavelength		nm	≤ 1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
Attenuation Coefficient	1550nm	dB/km	≤0.21
Macro-bend loss (1 turn,7.5mm radius)	1550nm	dB/km	≤0.5
Macro-bend loss (1 turn,7.5mm radius)	1625nm	dB/km	≤1.0
Proof stress level		kpsi	≥100

Product Model	Fiber Count (core)	Cable Diameter(mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/ShortTerm(N)	Bending Radius Static/Dynamic
GJXH	1	(2.1+0.1)*(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	2	(2.1+0.1)x(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	4	(2.3+0.1)*(3.3+0.1)	12	1000/2200	200/1000	\|15/30
GJXFH	1	(2.1+0.1)x<(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	2	(2.1+0.1)x(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	4	(2.1+0.1)x(3.1+0.1)	11	800/1800	200/1000	15/30
GJYXCH	1	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXCH	2	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	\|15/30
GJYXCH	4	(2.1+0.1)x(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXFCH	1	(2.1+0.1)*(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	2	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	4	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30
