Inicio /Productos/cable de fribra óptica subterráneo/Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground

Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground

1 km
MOQ
Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo de fibra: Modo único G652D o como su solicitud
color: Negro o anaranjado o modificado para requisitos particulares
Chaqueta: PE,MDPE,LSZH,PVC,HDPE
Conteo de fibra: 2-288cores
Nombre del producto: Cable blindado de tubo holgado trenzado
Instalación: Antena y conducto
Tipo: Modo único y multimoda
Nombre: Cables de fibra óptica de blindaje exterior
Información básica
Lugar de origen: Cantón, China
Nombre de la marca: JQ/OEM/Customize
Certificación: ISO9001 ROHS CE-EMC FCC SDOC
Número de modelo: Gyta53
Pago y Envío Términos
Detalles de empaquetado: Tambor de madera
Tiempo de entrega: 5-8 DÍAS LABORALES
Condiciones de pago: LC, T/T, Western Union
Capacidad de la fuente: Los 4500KM por mes
Descripción de producto

Double Jacket Armored Direct Buried Fiber Optic Cable GYTA53 GYTS53

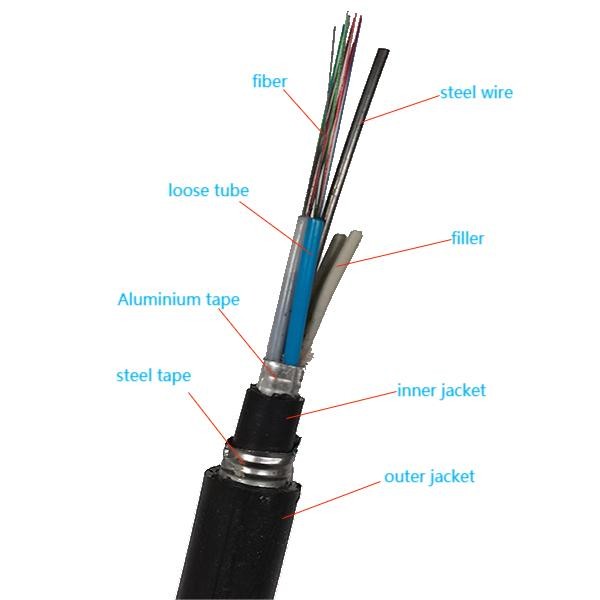

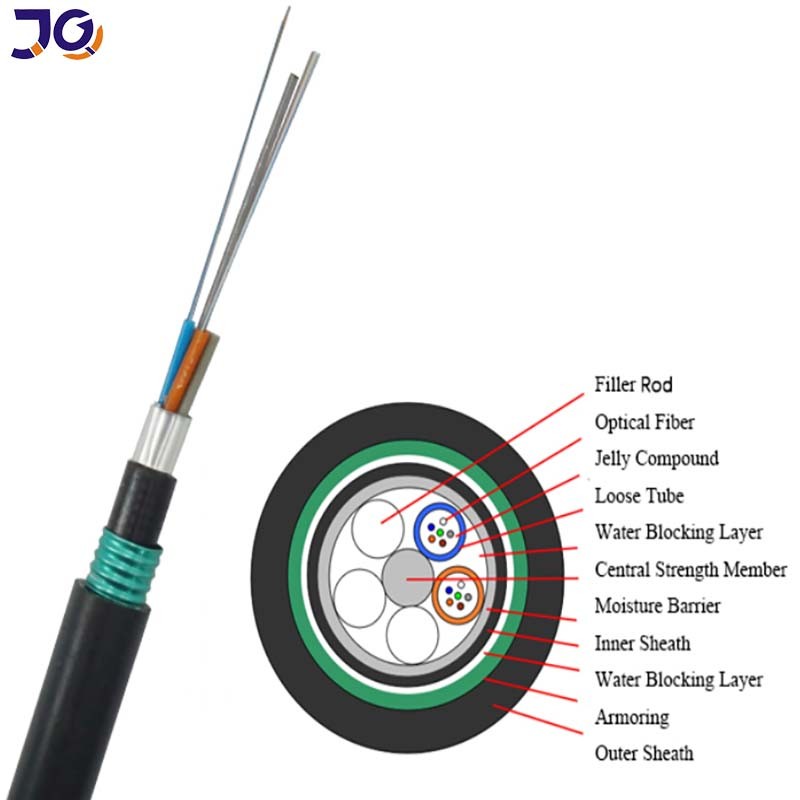

GYTA53 aluminum armored fiber optic cable is designed for underground duct and direct burial applications. 250µm fibers are placed in high-modulus loose tubes filled with water-blocking compound. Tubes are stranded around a central steel wire strength member to form a compact core. An APL moisture barrier and PSP armor provide excellent water and mechanical protection. The cable is finished with PE inner and outer jackets for long-term outdoor durability.



Features

  • Excellent mechanical and temperature performance

  • High-strength, water-resistant loose tube design

  • Special gel filling provides reliable fiber protection

  • Compact structure prevents cable shrinkage

  • UV-resistant PE jacket ensures long-term waterproofing

  • Central steel wire strength member

  • Full core filling with APL moisture barrier

Application

  • Suitable for direct burial installation



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters



GYTA53( Aluminium polyethylene laminate)
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Allowable Tensile Load
(N)
Allowable Crush Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~30
13.2
162
3000
1000
3000
1000
32~48
13.8
175
3000
1000
3000
1000
50~72
14.6
205
3000
1000
3000
1000
74~96
16.0
230
3000
1000
3000
1000
98~144
17.6
285
3000
1000
3000
1000
＞144
Avaliable upon customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information




Product show

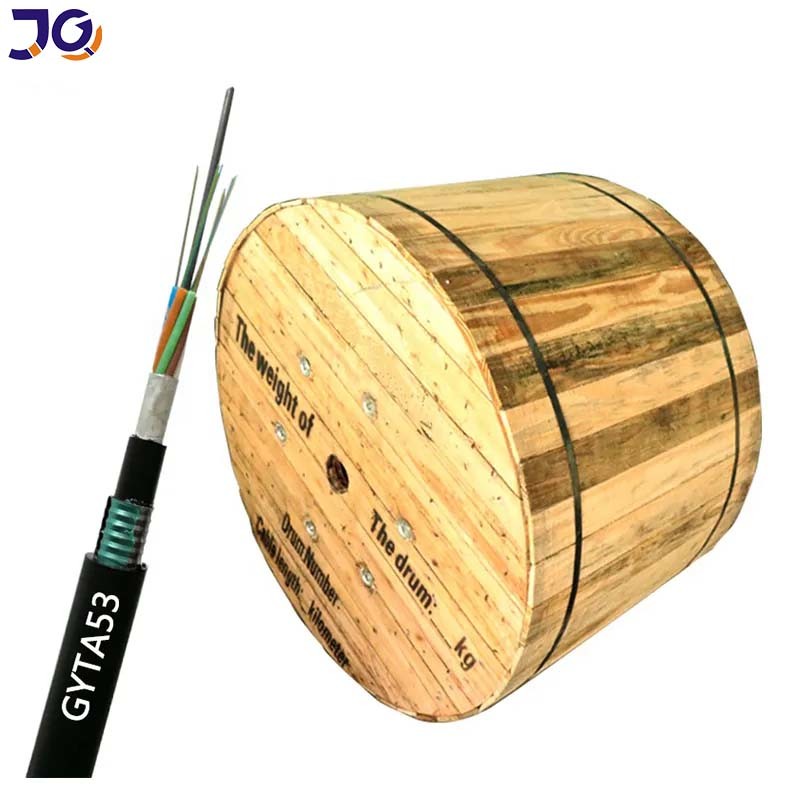

Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground 0

Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground 1

Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground 2



FAQ

1. Are you a trading company or manufacturer?
We are a professional manufacturer with over 10 years of experience, specializing in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China. Factory visits are welcome.



2. How do you ensure product quality?
All fibers are fully tested before delivery. Free samples are available after price confirmation for quality evaluation.



3. Do you accept small orders?
Yes. Small orders are welcome, and we support new customer projects starting from small quantities.



4. What is your delivery time?
Normally 3–7 working days, depending on order quantity. We arrange shipment as soon as payment is received.



5. Do you provide OEM service?
Yes. OEM service is available, including logo printing and customized designs.
