GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable
GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable
Contactar ahora

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable

Cantidad de orden mínima : 1 km Detalles de empaquetado : Tambor de madera
Tiempo de entrega : 5-8 días laborables Condiciones de pago : LC, T/T, Western Union
Capacidad de la fuente : los 30km por día
Lugar de origen: Cantón, China Nombre de la marca: JQ/OEM/Customize
Certificación: ISO9001 ROHS CE-EMC FCC SDOC Número de modelo: GCYFY/GCYFTY

Información detallada
Conteo de fibra: 4-144cores Tipo de fibra: Modo único/modo múltiple
Chaqueta: PE/PVC/LSZH Color: Negro
Nombre del producto: cable micro Aire-soplado Número de modelo: Gcyfy
Longitud: 2 km o longitud personalizada Estructura: Cable micro
Resaltar:

Micro duct fiber optic cable

,

Air blown fiber cable 96 core

,

High density outdoor fiber cable

Descripción de producto

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Features

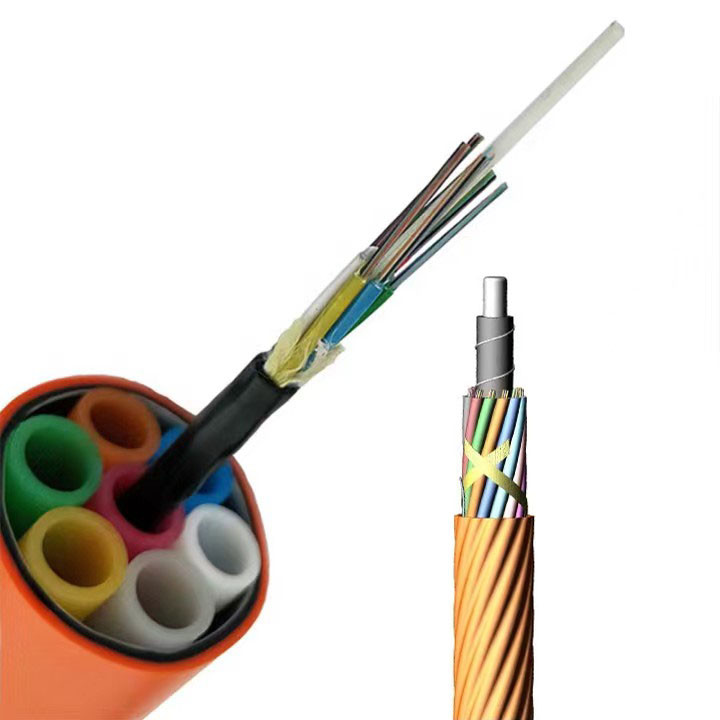

GCYFY air-blown micro cable uses a non-metallic, no-armor design with loose-tube stranding. It can be pulled or air-blown into pre-installed microducts, maximizing duct utilization and allowing fast, scalable network expansion.



Applications
Ideal for FTTH feeder and drop segments, connecting branch points to access points by air-blown installation. Also suitable for backbone, metro, and access networks.



Product Description

  1. Model: GCYFY

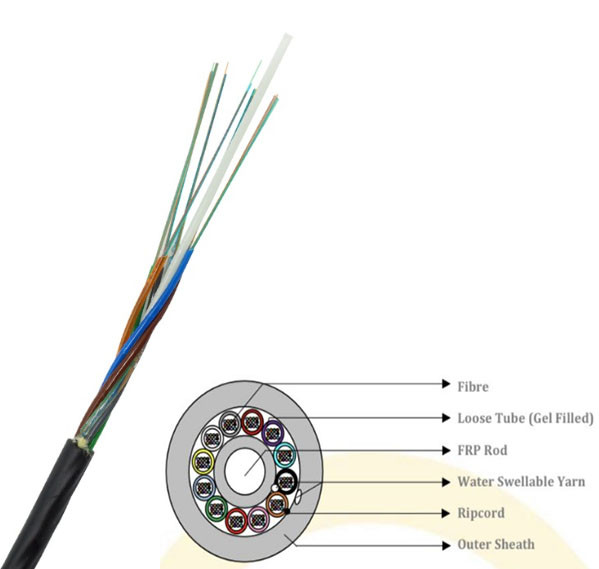

  2. Cable Cross-section Available





Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%



GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 0



Fiber & Tube Color


GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 1

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 2

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃



Cable Parameters



Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 3



Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 4

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 5

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 6

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 7
