GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation
GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation
GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation
Contactar ahora

GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation

Cantidad de orden mínima : 1 kilómetro Detalles de empaquetado : Tambor de madera
Tiempo de entrega : 2-5 días Condiciones de pago : L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente : 8000 kilómetros por mes
Lugar de origen: Guangdong, China Nombre de la marca: JQ/OEM/Customize
Certificación: CE/ISO9001/RoHS/FCC Número de modelo: Gyta 12core/24core/48core

Información detallada
Tipo: Cable de TAC Lugar de origen: Guangdong, China
Tipo de fibra: Modo único G652D o como su solicitud Conteo de fibra: 2-144 núcleos
Longitud: personalizado Color: personalizado
Tubo: Tubo de varios lazos miembro de la fuerza central: Alambre de acero
Blindado: Cinta de aluminio Vaina exterior: PE/ MDPE/ HDPE o como su solicitud
Paquete: Tambor de madera/personalizado Solicitud: Entierro/ conducto directo
OEM: Disponible Temperatura de funcionamiento: -40°C~+70°C
Diámetro general: 11.4 mm ~ 13.10 mm Envío no deseado: Las medidas de seguridad se aplicarán en el caso de los vehículos de las categorías A y B.
Exterior: Cable de fibra óptica al aire libre Camisetas y chalecos: Orina
Muestras: Gratis Estructuración: tubo suelto central
Chaqueta exterior: HDPE Longitud estándar: 2.000m/4.000m
Miembro central del fortalecimiento: FRP Diámetro de la chaqueta: 12.8
Servicio: OEM y ODM Número de conductores: ≥ 10
blindado: Cinta de aluminio
Resaltar:

GYTA aluminium armored fiber optic cable

,

144 core outdoor fiber optic cable

,

duct direct burial fiber optic cable

Descripción de producto

GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture Resistant Design



Product Overview

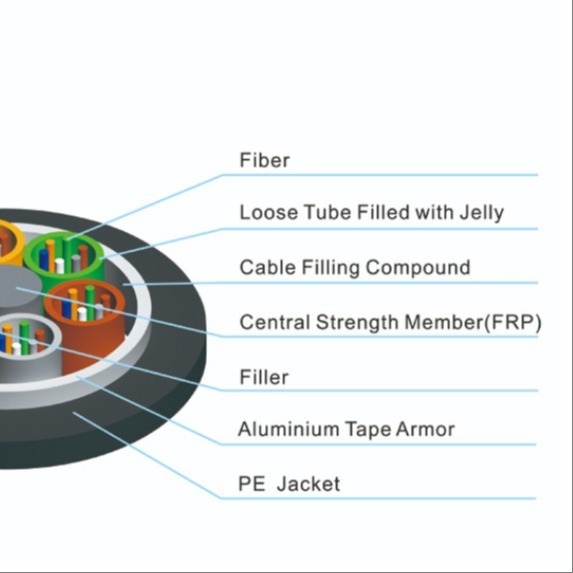

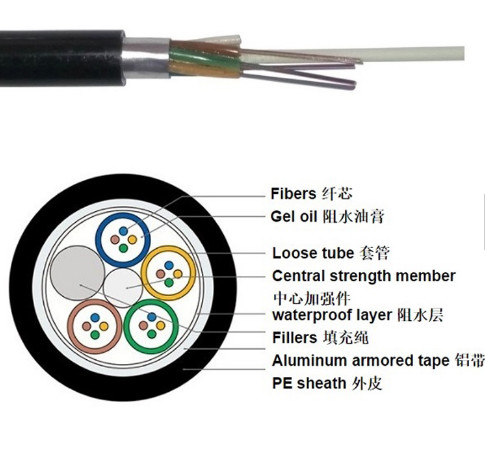

GYTA fiber optic cable uses a stranded loose tube structure around a central strength member to form a compact and stable core The core is wrapped with aluminum polyethylene laminate tightly bonded to a PE inner sheath providing strong longitudinal and radial moisture blocking Corrugated steel tape and a durable MDPE outer jacket offer additional mechanical protection making the cable ideal for outdoor environments



Why Choose GYTA
Unlike direct buried cables GYTA is designed for aerial and duct installation delivering reliable performance for long distance telecommunication networks The letter A stands for aluminum tape which offers excellent anti corrosion and moisture protection ensuring longer service life in ducts and harsh environments



Key Features

  • High Strength Construction – Superior tensile and crush resistance with long term durability

  • Central Strength Member – Phosphatized steel wire core optionally coated with PE for flexibility and corrosion protection

  • Water Blocking System – Tubes and interstices fully filled with water blocking gel to prevent longitudinal water penetration

  • Moisture Protection – Aluminum tape with bonded PE sheath creates an effective barrier against water and rust

  • Extended Lifespan – Stable optical transmission for long term reliable operation

  • Wide Applications – Perfect for telecom backbone metropolitan networks CATV and high speed data links

GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation 0

Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available


Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation 1

WHY CHOOSE US:

GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation 2



Certification:

GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation 3

FAQ



1. Who Are We
We are a professional fiber optic cable manufacturer in Guangdong China founded in 2017 Our main markets include Africa South America Western Europe the Middle East Southeast Asia and South Asia with a team of 11 to 50 skilled employees



2. How Do We Guarantee Quality

  • Pre production samples provided for approval before mass production

  • 100 percent final inspection before shipment to ensure quality

3. What Products Do We Offer
Fiber Optic Cables FTTH Drop Cables Indoor and Outdoor Communication Cables and related accessories



4. What Services Are Available

  • Delivery Terms: FOB EXW

  • Payment Methods: T T L C D P D A Credit Card PayPal Western Union Cash

  • Currencies: USD CNY

  • Languages: English Chinese

5. What Is the Minimum Order Quantity
Our MOQ is 1KM and we welcome trial orders for new projects



6. Can I Get a Sample
Yes we offer free samples you just pay for express shipping



7. Do You Support OEM or ODM
Yes we provide OEM and ODM service with custom design logo and packaging options



8. What Is the Lead Time
Normally 3 to 7 working days depending on quantity and specifications
