Optical Fiber Cutter Handheld Optical Fiber Cleaver
Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver
Contactar ahora

Optical Fiber Cutter Handheld Optical Fiber Cleaver

Cantidad de orden mínima : 1 pieza Detalles de empaquetado : Dentro caja de plástico, afuera con cartón
Tiempo de entrega : 3-5 días, depende de la cantidad del pedido. Condiciones de pago : L/C, T/T, Western Union, Alipay
Capacidad de la fuente : 2000 piezas por mes
Lugar de origen: PORCELANA Nombre de la marca: JQ/OEM
Certificación: ISO 9001 Número de modelo: FC-20

Información detallada
Solicitud: herramienta de la red Nombre del producto: El cortador de fibra óptica
Moq: 1 por ciento Tiempo de garantía: 1 año
Longitud hendida: Fibra única: 8 ~ 20 mm Cable de fibra aplicable: Fibra única: 0.25 ~ 3.0 mm
Ángulo escindido típico: Menos de 0,5 grados
Resaltar:

handheld optical fiber cleaver

,

optical fiber cutter tool

,

fiber optic cleaver with warranty

Descripción de producto

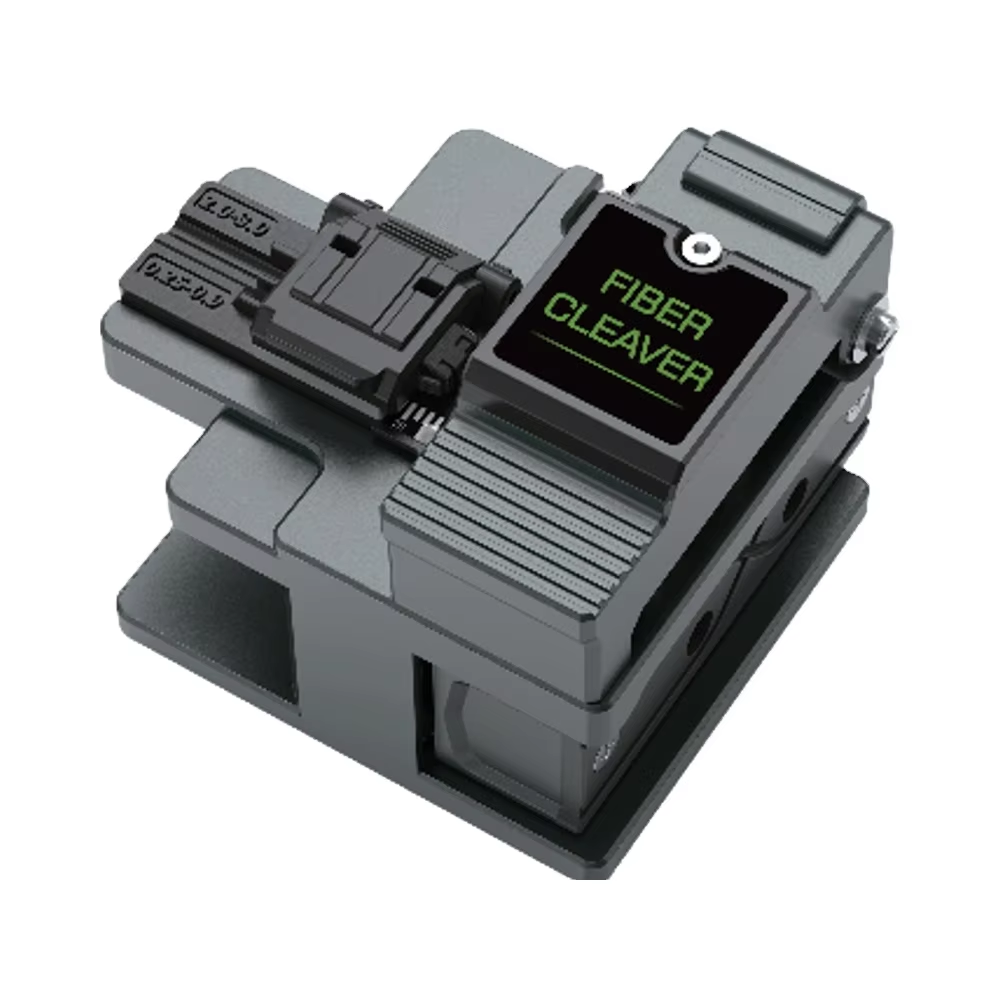

FC-20 Handheld optical fiber cleaver

Blade life up to 48,000 times
Typical cleaving angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Palm-sized design, lightweight and portable
All-in-one holder is suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture

Optical Fiber Cutter Handheld Optical Fiber Cleaver 0

Optical Fiber Cutter Handheld Optical Fiber Cleaver 1Optical Fiber Cutter Handheld Optical Fiber Cleaver 2





Product configuration
Fiber cleaver FC-20
1
Carrying case
1
Quick guide
1

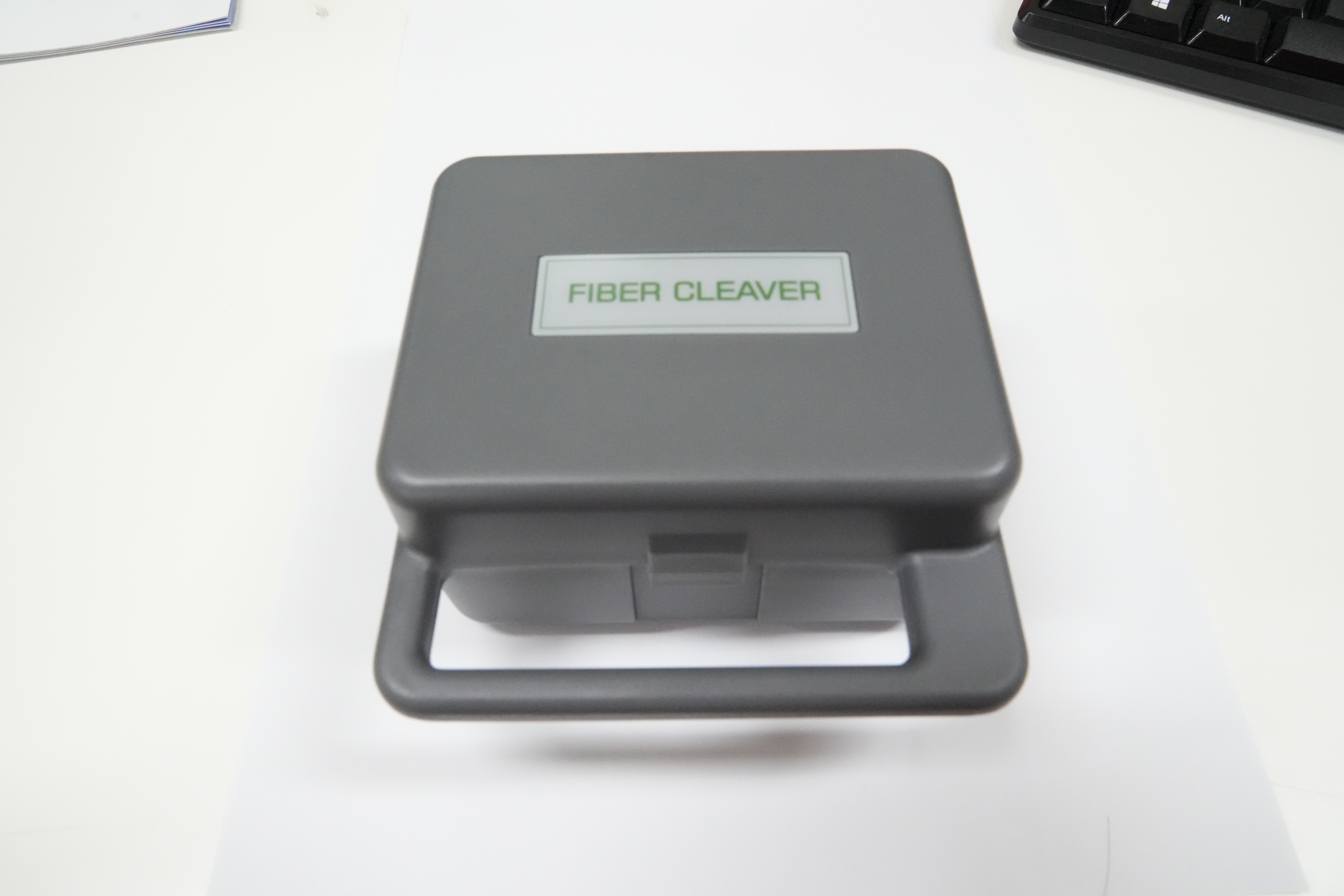

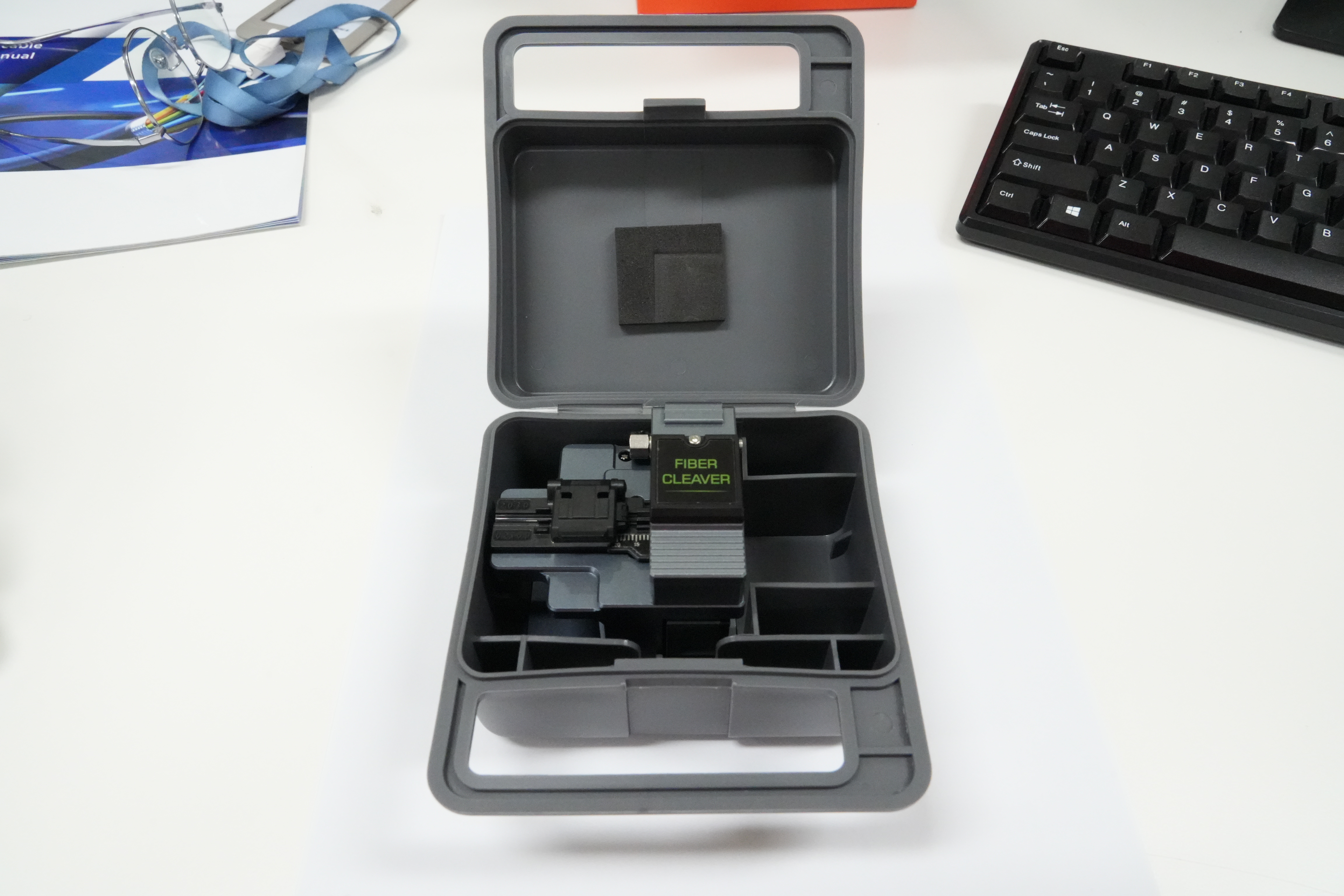

Professional carrying case

The slot design in the box prevent damage to the cutting blade body caused by shaking and collision,and can effectively protect the cutting blade



Optical Fiber Cutter Handheld Optical Fiber Cleaver 3



Specification

Brand Name
JQ/HAISO/OEM
Place of Origin
Guangzhou China
Use
ftth
Warranty Time
1year
Product name
Optical Fiber Cleaver
No. of Fiber
Single fiber
Ladding Diameter
125μm
Cleaved Length
Single fiber: 8~20mm
Applicable Fiber Cable
Single fiber: 0.25 ~ 3.0mm
Typical Cleaved Angle
Less than 0.5 Degrees
Typical Blade Life
Total 48,000 fiber cleaves (replaceable)
Auto Return
Pre-fitted
MOQ
1Pcs
Dimension
55W *55D*50H(mm)
Weight
235g



Optical Fiber Cutter Handheld Optical Fiber Cleaver 4





Optical Fiber Cutter Handheld Optical Fiber Cleaver 5

Optical Fiber Cutter Handheld Optical Fiber Cleaver 6Optical Fiber Cutter Handheld Optical Fiber Cleaver 7
