96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission
96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission
96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission
Contactar ahora

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Cantidad de orden mínima : 1 km Detalles de empaquetado : Tambor de madera
Tiempo de entrega : 5-8 días de trabajo Condiciones de pago : L/C, T/T, Western Union
Capacidad de la fuente : los 30km por día
Lugar de origen: Guangzhou, China Nombre de la marca: JQ/OEM/Customize
Certificación: ISO9001 ROHS CE-EMC FCC SDOC Número de modelo: GCYFY/GCYFTY

Información detallada
Conteo de fibra: 4-144cores Tipo de fibra: Modo único/modo múltiple
Chaqueta: PE/PVC/LSZH/HDPE/MDPE Color: Negro o anaranjado o modificado para requisitos particulares
Nombre del producto: cable micro Aire-soplado Número de modelo: GCYFY/GCYFTY
Longitud: 2 km o longitud personalizada Instalación: Antena o conducto
Número de conductores: ≥ 10 Exterior: Cable de fibra óptica al aire libre
miembro de la fuerza central: Cables de FRP o de acero Material de bloqueo de agua: Cinta de bloqueo de agua o compuesto de llenado
armadura: Blindaje con cinta de acero corrugado Tamaño de cable: 8 mm ~ 16 mm
Núcleo: Según la petición del comprador Estructura de cables: Blindaje con cinta de acero de tubos sueltos múltiples
RTS: 45-80 kN Temperatura de funcionamiento: -40 ° C a +70 ° C
OEM: Aceptable Garantía: 25 años
Tubo suelto: PBT Modelo: Cables blindados de fibra óptica
Material de la chaqueta: Orina Modelo de fibra: Soltero/multimodo
Centro: 12-144cores Diámetro del mensajero: 5.0 mm
Color de la chaqueta: Negro Fuera de la vaina: HDPE
Tiempo de la elevación: Más de 20 años Material de tubo suelto: PBT
Estructuración: tubo suelto central Material de la cubierta interior: PE/PEAD
Muestra: Gratis Número central: 6 núcleos/8 núcleos/12 núcleos
Miembro de la fuerza: Alambre de acero Tipo de cable: Tubo suelto
Resaltar:

96 core microduct fiber cable

,

air blown outdoor fiber optic

,

loose tube high speed cable

Descripción de producto

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable

Product Description

The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.

Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.

Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.





1. Model: GCYFY-96B1.3

2. Cable Cross-section





96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color


96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 1

Features

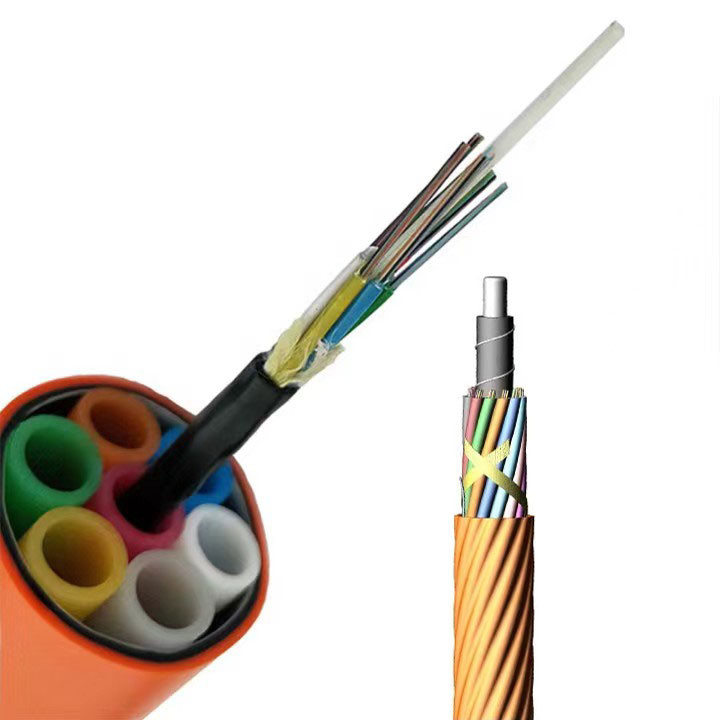

GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.



96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 2







Cable Parameters





Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38





Environmental Characteristics

Working temperature -35oC ~ +70oC
Storage and transportation temperature -35oC~ +70oC
Installation temperature -15oC~ +60oC





Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.



Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 3



FAQ

Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.



Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.



Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.



Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.



Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.



Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.



Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
