GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation
Persona de Contacto : JQ CABLE
Número de teléfono : +8618122383351
Whatsapp : +8618122383351
Minimum Order Quantity : | 1KM | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 3-5 days, it depends on your quantity | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 60000KM/month |
Place of Origin: | Guangdong, China | Nombre de la marca: | Jiqian/Customize |
---|---|---|---|
Certificación: | CE/ISO9001/RoHS/FCC | Model Number: | GYTS-48B1 |
Información detallada |
|||
Fiber Type: | G652D/G657A1/G657A2 | Fiber count: | 2-288 cores |
---|---|---|---|
Jacket: | PE,MDPE,LSZH,PVC | Color: | Black |
Length: | 2km , 5Km, or customized length | Warranty: | 10 Years |
Application: | Duct/ Direct Burial | Wave Length: | 1310/1550 |
Tube Type: | Loose tube | Lift Time: | More Than 20 years |
Fiber Brand: | yofc/corning | Waterproof: | Yes |
Jacket Diameter: | 9.8-16.1 | Allowed Lateral Pressure: | >1000(N/100mm) |
Strength Member: | Two steel wire | Cable Length: | 1000m |
Number Of Conductors: | 2,4,8,24,48 | Diameter Of Tube: | 2.2-2.6mm |
Span: | 100/200/300/400/500m | Armor Type: | Steel Tape |
Resaltar: | GYTS armored fiber optic cable,underground burial fiber optic cable,2-288 core fiber optic cable |
Descripción de producto

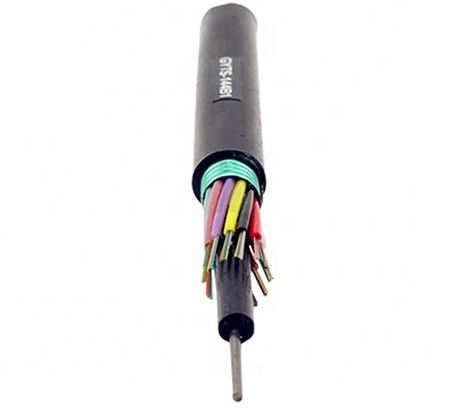

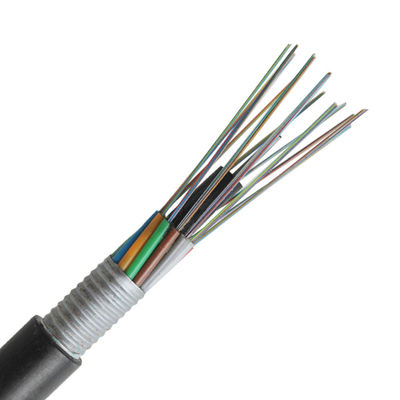

The 2, 4, 6, 8, 12, 24, 32, 48 Cores Armoured Optical Fiber Cable GYTS is designed for high-performance underground fiber optic installations. Equipped with a robust armoured layer, this cable ensures superior protection against mechanical damage and environmental factors. Available in multiple core configurations, it provides excellent flexibility and reliable data transmission over long distances. Ideal for telecom networks, data centers, and other critical communication infrastructures.

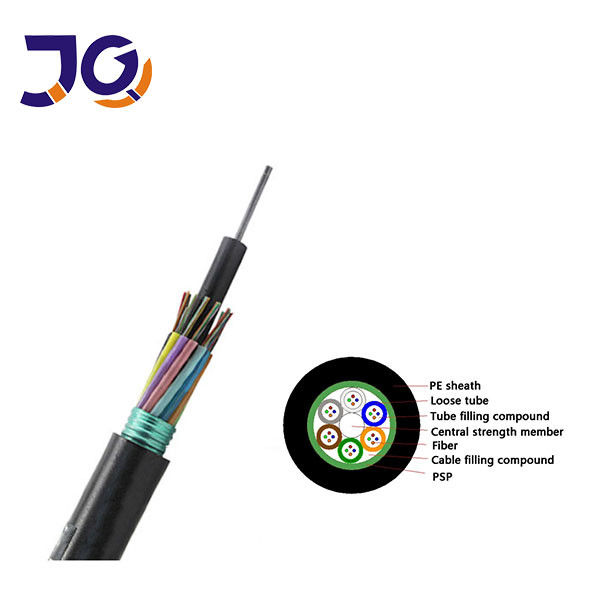

Loose tubes (or fillers) are stranded around a central metal strength member.
The core is wrapped with corrugated steel tape and protected by a PE outer jacket.
The tubes, made from temperature-resistant materials, house double-coated single-mode or multi-mode fibers.
Fibre type selection
Fibre colour coding
Excellent water resistance
High crush resistance
Sheath material options
Low attenuation and dispersion
Flexible and bendable
Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.
Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.
Fiber optic cables transmit data using light signals, offering faster speeds and higher bandwidth than traditional copper cables.
We offer armoured, drop, and loose tube fiber optic cables, suitable for various applications like underground and FTTH installations.
We offer cables with 2, 4, 6, 8, 12, 24, 32, and 48 cores, with custom core counts on request.
Single-mode: Best for long-distance, high-speed communication.
Multi-mode: Ideal for shorter distances and higher data transmission rates.
Cables are packed in fumigated wooden drums, with an outer layer of polyethylene sheets and strong wooden battens for protection.
Choose based on core count, type of fiber (single-mode or multi-mode), and the installation environment (indoor, outdoor, underground). We can assist with selecting the best option.
Orders typically ship within 7-10 business days, with longer lead times for custom orders.
We do not provide installation directly but can recommend trusted installers.
You can request a quote by contacting us at [Insert Email], providing your specific needs (core count, cable type, quantity, etc.).
