Fibra óptica LC/FC/SC/ST de alta calidad y personalizada
Persona de Contacto : Philip
Número de teléfono : +8613422342788
Whatsapp : +8613422342788
Cantidad de orden mínima : | 100 pedazos | Detalles de empaquetado : | Exterior: cartón, dentro: la bolsa de plástico |
---|---|---|---|
Tiempo de entrega : | 3-5 días, depende de cantidad de la orden | Condiciones de pago : | L/C, T/T, Western Union, Alipay |
Capacidad de la fuente : | 50000 por mes |
Certificación: | ISO 9001 |
---|
Información detallada |
|||
Lugar de origen: | Guangzhou, China | Nombre de la marca: | Jiqian |
---|---|---|---|
Número de modelo: | Coleta de SC/UPC | longitud: | el 1.5m o modificado para requisitos particulares |
Tipo del conector: | SC/UPC | Tipo de la fibra: | G652D/G657A |
Chaqueta: | PVC/LSZH | Virola Endface: | UPC |
Alta luz: | 0.9mm Simplex Fiber Optic Pigtail,1.5M 0.9mm Fiber Optic Pigtail,1.5M 0.9mm single mode fiber pigtails |
Descripción de producto

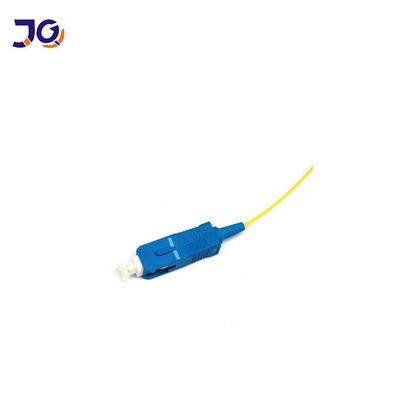

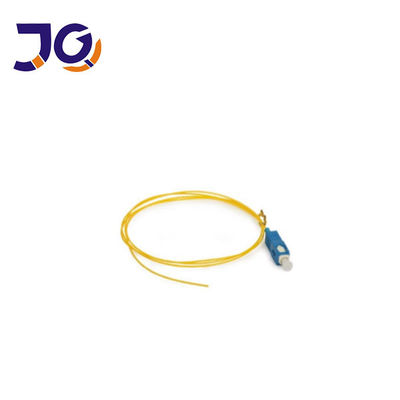

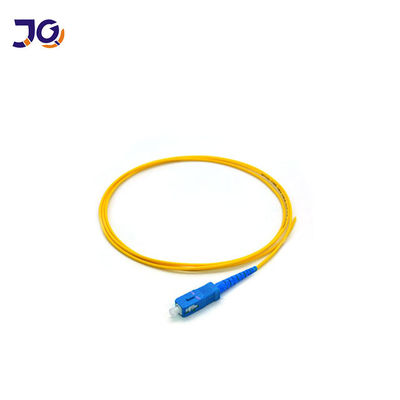

SC/UPC 1.5M Single mode 0.9mm Simplex Fiber Optic Pigtail
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.
• Apply for CATV, LAN, Telecom network, test equipment
• CATV
• Telecommunication networks
• Active device termination
• Metro
• Local Area Networks(LANs)
• Test equipment
• Premise installations
Performance Index
Item | SM(Single Mode) | MM(Multimode) | |||
Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
Endface Type | PC | UPC | APC | UPC | UPC |
Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
Return Loss (dB) | >45 | >50 | >60 | / | |
Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
Anti-tensile Force (N) | >70 | ||||
Temperature Range (℃) | -40~+80 |
FAQ
1,Q:What is the MOQ?
2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.
4.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
